External Bearing Gear Pump

Next > >

Send Inquiry

Product Code : AE Series

Brand Name : Ajay Engineering

Product Description

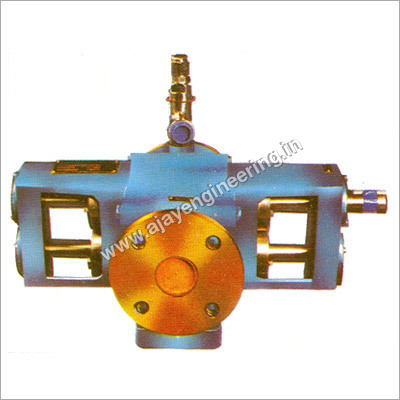

External Bearing Gear Pump

AE-Series Classification

Our organization is a renowned member of Small Scale Industries of India (SSI) instrumental in manufacturing, exporting and supplying a superlative range of high grade External Bearing Gear Pump. Pumps offered by us have optimum RPM of 750 and are offered in horizontal foot and vertical v-belt pulley mounting. Besides, these pumps have flooded suction control. We use high quality grade iron for making external pump body. External Bearing Type Pumps offered by us is made available to the clients within stated time frame.

Products Features:

Accurate efficiency
Longer life
Perfect operation
Minimum service requirement

Products General Specification:

Pump Rpm : 750 Rpm.
Mounting : Horizontal Foot Mounting / Vertical V-Belt Pulley Mounting
Type Of Drive : Directly Coupled / V-Belt Pulley Driven / In-Line Gearbox / Variable Speed Motor
Suction Condition : Flooded
Pump Body & Brackets : Ss-316 / Ss-304
Pump Ext. Bearing Housing : Graded Cast Iron
Gears & Shafts : Ss-316 / Ss-304 Ground
Gear Type : Spur / Single Helical / Herringbone
Sealing System : Mechanical Seal System (4 Nos.)
Pressure Relief Valve : Externally Adjustable Pressure Relief Valve
Internal Bearing Type : Ptfe Bushes (4 Nos.) / Carbon Filled Ptfe Bushes (4 Nos.)
External Bearing Type : Deep Groove Ball Bearings (4 Nos.)

Products Technical Specification:

Model	PORT OPTIONS		CAPACITY in Ltr/min (LPM) @ 500 RPM	Recommended Horse-Power (hp) at Different Pressures
	Suction & Discharge (BSP Threaded Ends)	Suction & Discharge (Flanged Ends)		At 50 P.S.I. (H.P.)	At 100 P.S.I. (H.P.)	At 200 P.S.I. (H.P.)	At 300 P.S.I. (H.P.)	At 500 P.S.I. (H.P.)



EB-4	1" x 1"	1" x 1"	20	1.5	3	5	7.5	15

EB-5	1½" x 1½"	1½" x 1½"	25	1.5	3	7.5	10	15

EC-1	1" x 1½"	1½" x 1½"	30	2	5	7.5	12.5	15

EC-2	1½" x 1½"	1½" x 1½"	35	2	5	10	15	20

EC-3	2" x 2"	2" x 2"	50	3	7.5	12.5	15	25

EC-4	2" x 2"	2" x 2"	65	5	5	10	15	30

EC-5	2½" x 2½"	2½" x 2½"	85	5	7.5	12.5	15	30

ED-1	2½" x 2½"	2½" x 2½"	100	7.5	7.5	15	25	---
