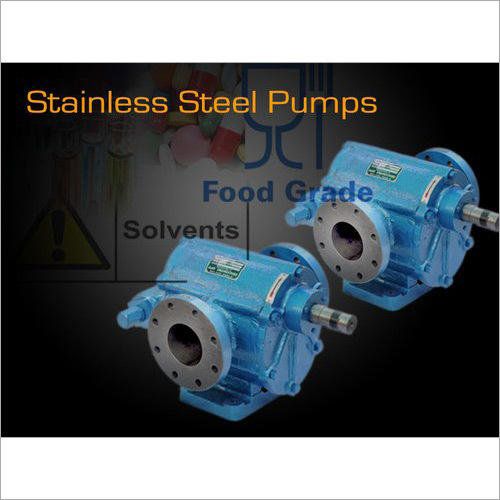

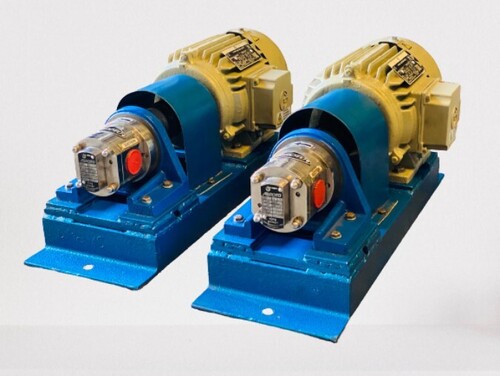

Stainless Steel Gear Pump

Stainless Steel Gear Pump
Stainless Steel Gear Pump
Send Inquiry
Product Code : SS AS-Series
Brand Name : Ajay Engineering
Product Description

Stainless Steel Gear Pump

 AS-Series Classification

In order to cater to the varied requirements of our valued patrons, we have been manufacturing, exporting and supplying the best quality of Stainless Steel Gear Pump. This gear pump is made available to the clients within stated time frame. This is done with the assistance of our highly experienced logistic personnel. In order to keep our clients in utmost comfort level, we have been accepting payment via various convenient modes. Stainless Steel Gear Pump offered by us is known for the following quality features:

  • Our Offered Pumps Having Doubled Helical Finished Gears And Hardened & Ground Shafts
  • Stainless Steel Gear Pump Can Be Operated Up To Pressure Of 20 Kg/Cm² With 5.0 Lpm To 900 Lpm Flow Capacity
  • Offered Stainless Steel Gear Pump Are Suitable For Liquid Up To Viscosity Of 1, 00,000 Ssu And Maximum Temperature Up To 200°c
  • Our Pumps Are Easy To Install
  • Supplying Pumps Are With Accurate Operational
  • We offered Stainless Steel Gear Pump with Longer life

Products General Specification:

  • Pump Rpm     :     500 Rpm
  • Mounting     :     Horizontal Foot Mounting / Vertical V-Belt Pulley Mounting
  • Type Of Drive Motor     :     Directly Coupled / V-Belt Pulley Driven / In-Line Gearbox / Variable Speed
  • Suction Condition     :     Flooded
  • Pump Body & Covers     :     Ss-316 / Ss-304 / Bronze
  • Gears & Shafts     :     Ss-316 / Ss-304 / Bronze, Ground
  • Gear Type     :     Spur / Single Helical / Herringbone
  • Sealing System           Mechanical Seal System / Oil-Seal System / Gland Packing System
  • Pressure Relief Valve     :     Externally Adjustable Integral Pressure Relief Valve
  • Bearing Type           Ptfe Bushes (4 Nos.) / Carbon Filled Ptfe Bushes (4 Nos.)

Products Technical Specification:

Model PORT OPTIONS CAPACITY in Ltr/min (LPM)
@ 750 RPM
Recommended Horse-Power (hp) at Different Pressures
Suction & Discharge
(BSP Threaded Ends)
Suction & Discharge
(Flanged Ends)
At 50
P.S.I.
(H.P.)
At 100 P.S.I.
(H.P.)
At 200 P.S.I.
(H.P.)
At 300 P.S.I.
(H.P.)
At 500 P.S.I.
(H.P.)
SB-1 ¾" x ¾" --- 15 1 1.5 3 5 7
SB-2 1" x 1" 1" x 1" 20 1 2 5 5 10
SB-3 1" x 1" 1" x 1" 25 1.5 3 5 7.5 10
SB-4 1" x 1" 1" x 1" 30 1.5 3 5 7.5 15
SB-5 1½" x 1½" 1½" x 1½" 35 1.5 3 7.5 10 15
SC-1 1½" x 1½" 1½" x 1½" 40 2 5 7.5 12.5 15
SC-2 1½" x 1½" 1½" x 1½" 50 2 5 10 15 20
SC-3 2" x 2" 2" x 2" 75 3 7.5 12.5 15 25
SC-4 2" x 2" 2" x 2" 100 5 5 10 15 30
SC-5 2½" x 2½" 2½" x 2½" 125 5 7.5 12.5 15 30
SD-1 2½" x 2½" 2½" x 2½" 150 7.5 7.5 15 25 ---
SD-2 3" x 3" 3" x 3" 200 7.5 12.5 20 --- ---
SD-3 3" x 3" 3" x 3" 250 7.5 15 25 --- ---
SD-4 --- 4" x 4" 500 15 30 60 --- ---
SD-5 --- 4" x 4" 750 20 40 75 --- ---
SD-6 --- 6" x 6" 1500 30 60 --- --- ---
