Molasses Gear Pumps

Molasses Gear Pumps
Molasses Gear Pumps
Product Code : AM Series
Brand Name : Ajay Engineering
Product Description

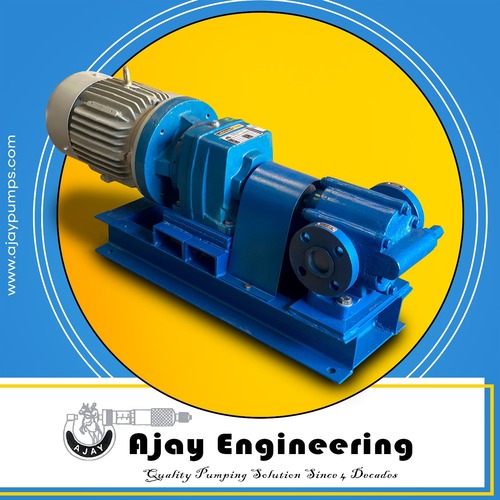

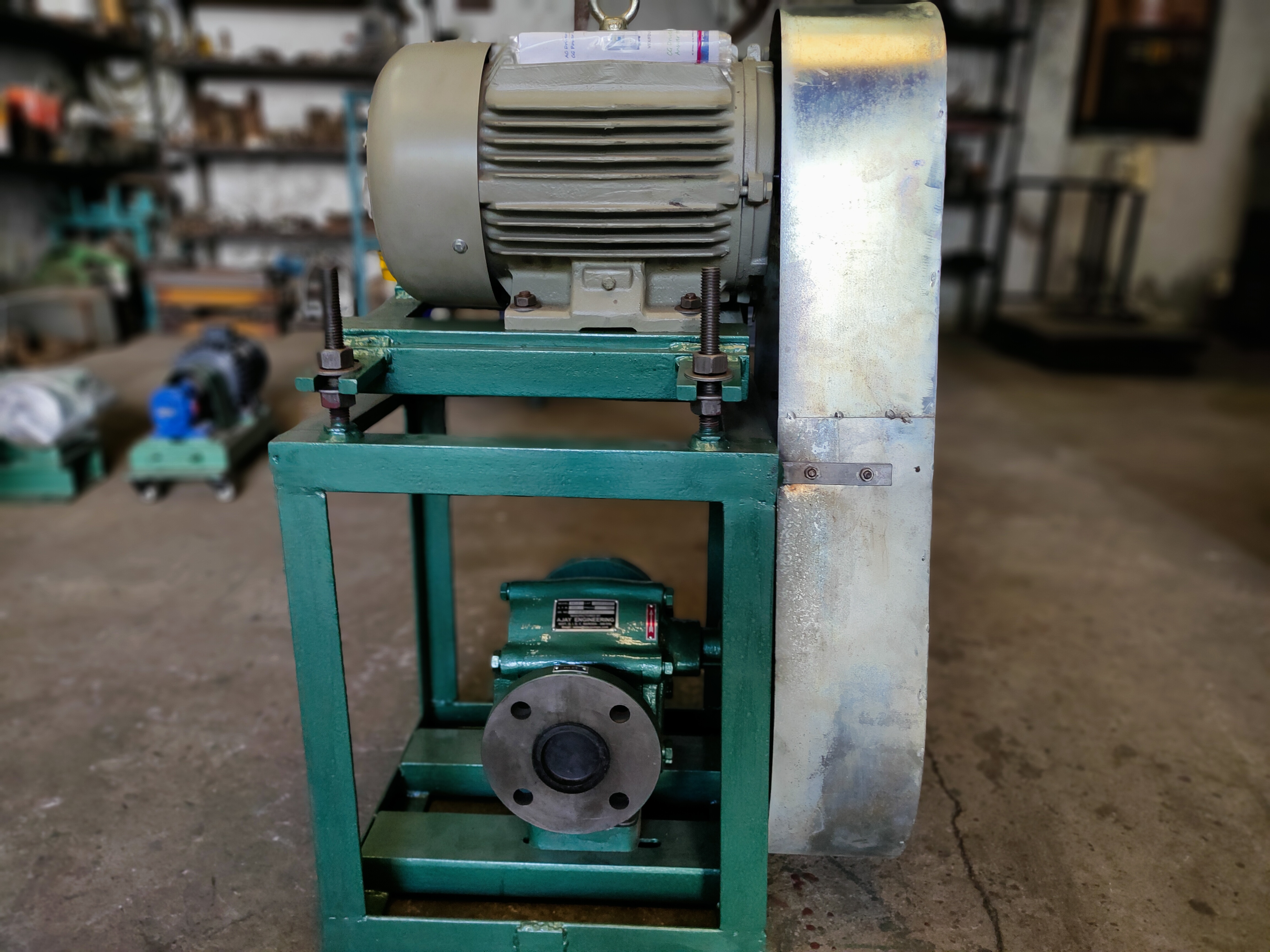

Molasses Gear Pumps

AM-Series Classification

Established in the year 1980, ours is a well established organization engaged in manufacturing, exporting and supplying a superlative range of quality approved Molasses Gear Pumps. These pumps are designed and developed using optimum grade material in our state-of-the-art manufacturing plant. Offered with vertical mounting, these pumps have optimum RPM rating. Adding to this, pumps offered by us have perfect liquid temperature and the pump body is made using high grade cat iron so as to ensure its longer life. Molasses Pumps offered by us is known for the following quality features:

  • Offered Molasses Pumps Having Noise Free Operation
  • Our products has Optimum performance
  • Flexible functioning is done by our Molasses Gear Pumps
  • Provided Molasses Pumps having Robust construction
  • Molasses Pumps offered with Non-corrosive
  • Offering Excellent design of products
  • High compressive strength

General Specification:

  • Pump Rpm : 500 Rpm.
  • Mounting : Vertical Mounting.
  • Optimum Liquid Temp. : 60o C To 80o C.
  • Suction Condition : Flooded.
  • Suction Foot-Valve : To Be Compulsorily Installed.

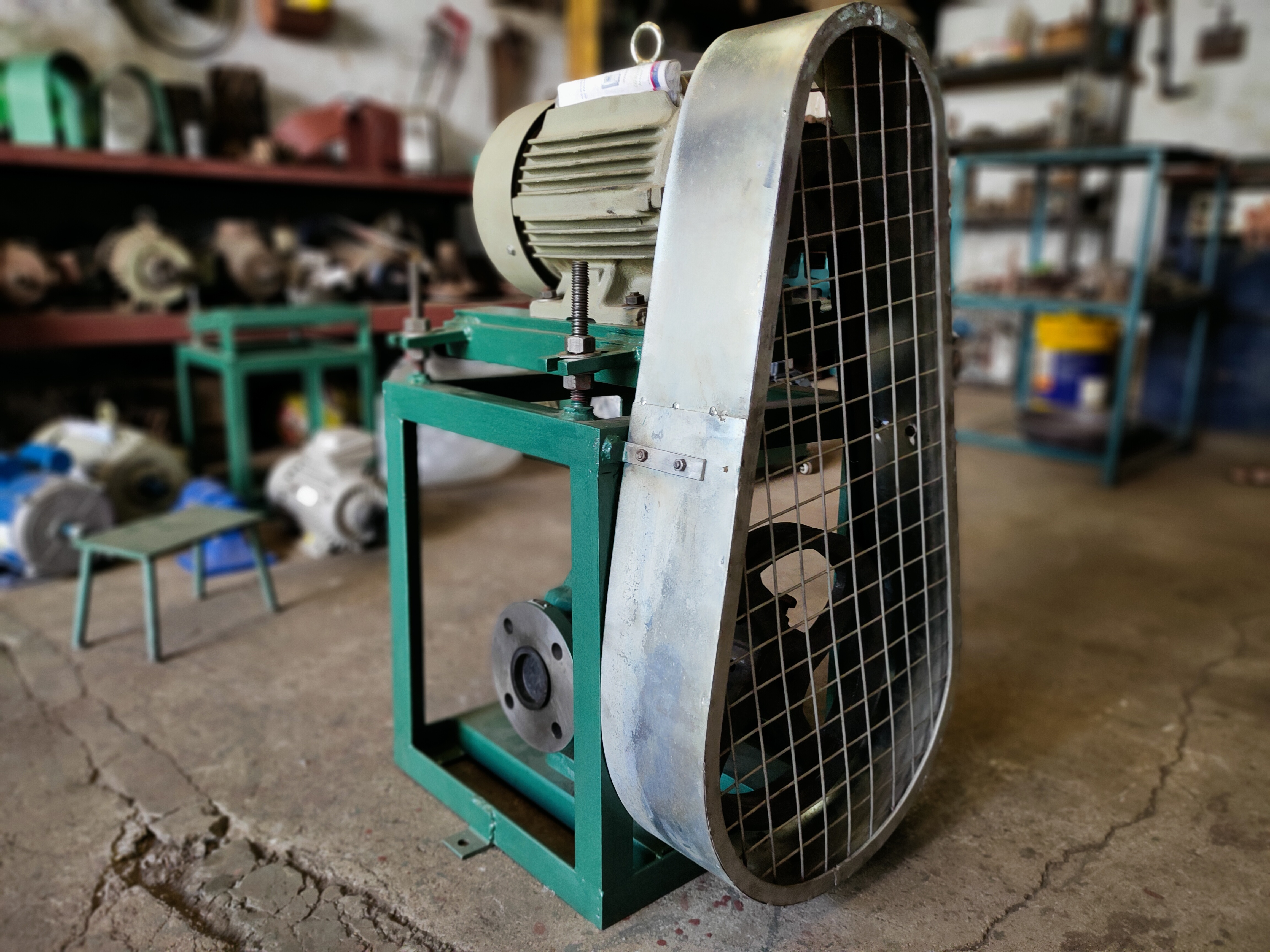

  • Pump Drive : V-Belt Pulley Driven / Variable Speed Drive / In-Line Gearbox Driven.
  • Pump Body & Covers : Graded Cast Iron.
  • Gears & Shafts : En-24 Harden & Ground.
  • Gear Type : Spur / Single Helical / Herringbone.
  • Sealing System : Gland Packing System.
  • Bearing Type : Bi-Metallic Bronze Bushes (4 Nos.)

Products Technical Specification:

Model Suction & Discharge (Flanged Ends) DISCHARGE CAPACITY OF PUMP
@ 500 RPM
Recommended Horse-Power (hp) at Different Pressures
At 50
P.S.I.
(H.P.)
At 100
P.S.I.
(H.P.)
At 200 P.S.I.
(H.P.)
At 300 P.S.I.
(H.P.)
At 500
P.S.I.
(H.P.)
In
Ltr/min
(LPM)
In
Ltr/hr
(LPH)
In
m3/hr
In
Tons/hr
(TPH)
MC-2 1½" x 1½" 33 2000 2 2.5 2 5 10 15 20
MC-3 2" x 2" 50 3000 3 3.5 3 5 12.5 15 25
MC-4 2" x 2" 66 4000 4 4.5 5 5 10 15 30
MC-5 2½" x 2½" 83 5000 5 6 5 7.5 12.5 15 30
MD-1 2½" x 2½" 100 6000 6 7 7.5 7.5 15 25 ---
MD-2 3" x 3" 133 8000 8 10 7.5 12.5 20 --- ---
MD-3 3" x 3" 166 10000 10 12 7.5 15 25 --- ---
MD-4 4" x 4" 333 20000 20 24 15 30 60 --- ---
MD-5 4" x 4" 500 30000 30 35 20 40 75 --- ---
MD-6 6" x 6" 835 50000 50 55 30 60 --- --- ---
