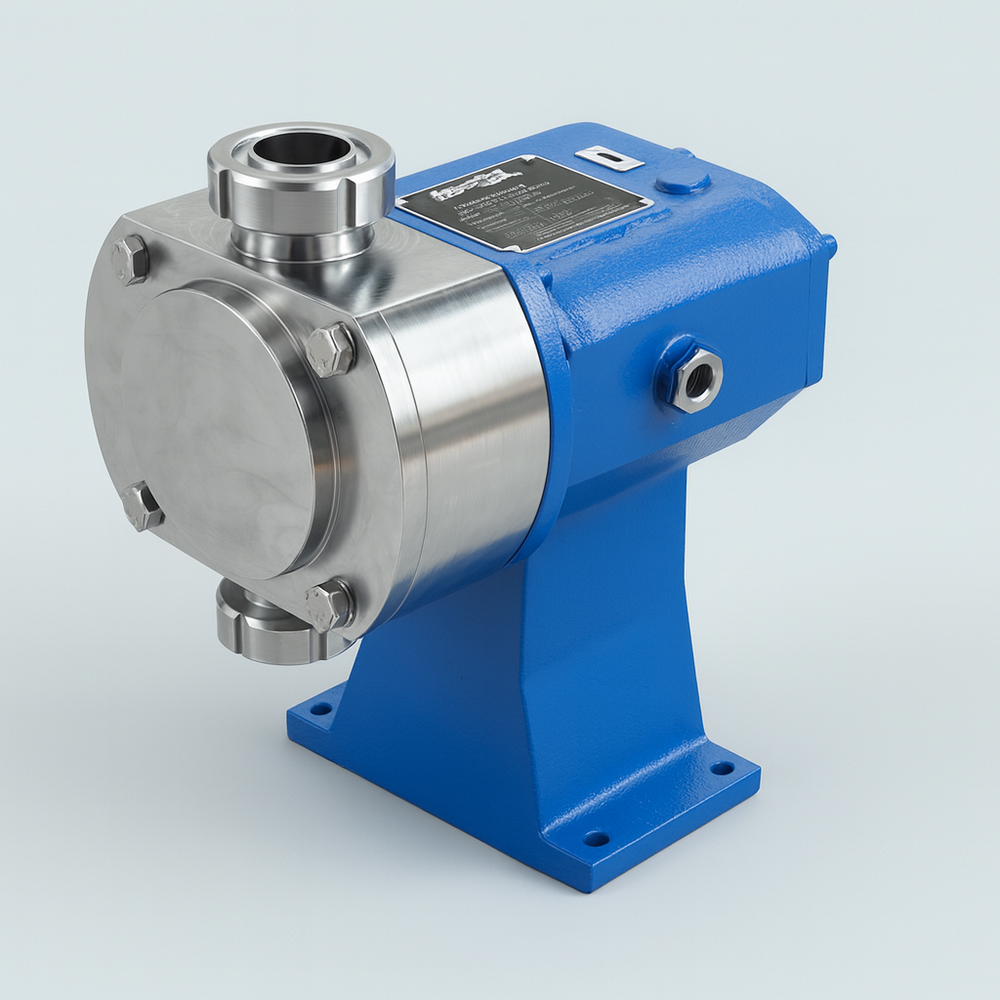

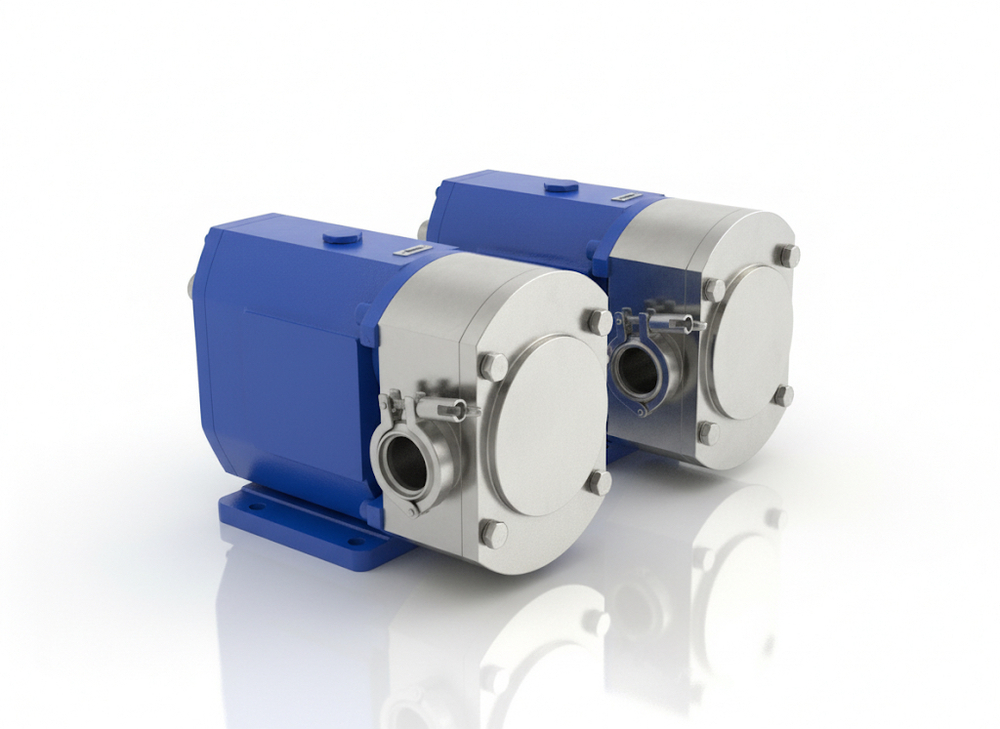

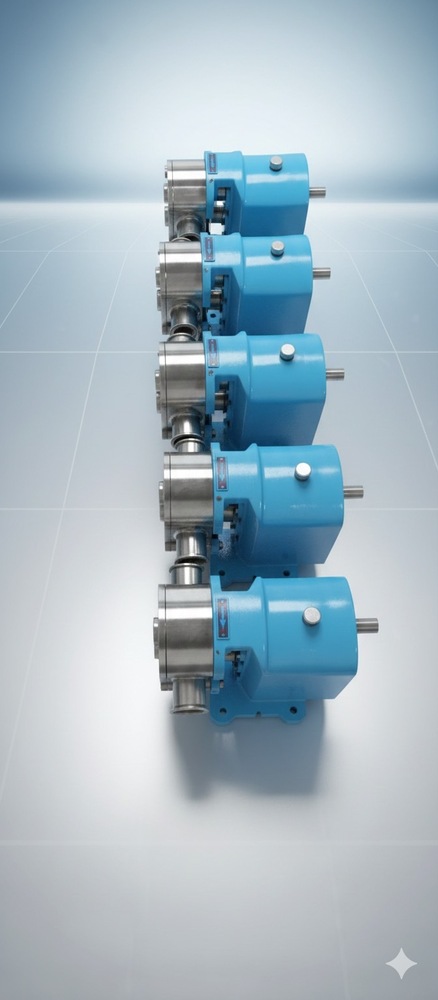

Cream Transfer Lobe Pump

Name: Cream Transfer Lobe Pump
Brand: AJAY ENGINEERING
Price: 40000 INR
Availability: InStock

Price 40000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Cream Transfer Lobe Pump Specification

Speed
100-500 RPM

Features
Easy to clean, CIP/SIP compatible, Compact Design

Inlet/Outlet
1.5 inch / 1.5 inch

Mounting Type
Base Plate

Noise Level
<70 dB

Discharge Pressure
Up to 10 Bar

Frequency
50 Hz

Head Size
Up to 25 Meter

Voltage
220 V

Working Temperature
-10C to 100C

Control System
Manual / Automatic

Theory
Rotary Pump

Caliber
38 mm

Flow Rate
1000-15000 LPH

Max Suction
6 Meter

Material
Stainless Steel (SS 316)

Structure
Lobe Pump

Power
1.5 HP

Standard
Hygienic Design, GMP

Fuel Type
Electric

Pressure
Up to 10 Bar

Usage
Food, Cosmetics

Application
Dairy, Food, Pharmaceutical, Cosmetic

Suction Type
Positive Displacement

Seals Type
Mechanical Seal

Priming
Self-Priming

Pump Type
Rotary Lobe

Capacity
Up to 15000 LPH

Max Solid Passage
8 mm

Impeller Type
Lobe (Three wing)

Seal Material
PTFE, EPDM, Viton optional

Weight
Approx. 50-75 Kg

Shaft Material
SS 316L

Port Connection
Triclover/Din/SMS/BSP

Surface Finish
Mirror Polish

Motor Protection
IP55

Direction of Rotation
Clockwise / Counterclockwise

Drive Type
Electric Motor Driven

Cream Transfer Lobe Pump Trade Information

Minimum Order Quantity
1 Unit

Main Export Market(s)
Asia, Australia, Western Europe, Middle East, Africa

Main Domestic Market
All India

About Cream Transfer Lobe Pump

AJAY make SS 316 Lobe Pump is High-Performance positive displacement pump designed for Gentle, Hygienic, and efficient transfer of Viscous and Semi Viscous Liquids. Precision-engineered from SS 316/SS 316L Stainless Steel, it ensures Superior Corrosion Resistance ideal for Food Application, Long Service Life, and compatibility with Food, Dairy, Pharma, Cosmetic and Chemical Application.

Equipped with specially designed bi-wing or tri-wing rotors, the pump delivers smooth, pulsation-free flow without product damage, making it ideal for shear-sensitive media, Its simple, robust construction ensures easy maintenance, CIP/SIP compatibility, and reliable 24/7 operation in demanding industrial environments.

Ajay Lobe Pumps are manufactured to high quality standards, offering excellent volumetric efficiency, consistent performance, and minimal downtime.
