Lubricating Pump Lubricating Pump Lubricating Pump
Lubricating Pump
Lubricating Pump Lubricating Pump

लुब्रिकेटिंग पंप

उत्पाद विवरण:

  • उपयोग कृषि
  • रंग नीला, चांदी और लाल
  • मटेरियल कच्चा लोहा
  • स्ट्रक्चर डायाफ्राम पंप
  • पावर इलेक्ट्रिक वाट (w)
  • प्रेशर मध्यम दबाव बार
  • अधिक देखने के लिए क्लिक करें
X

लुब्रिकेटिंग पंप मूल्य और मात्रा

  • यूनिट/यूनिट
  • 1

लुब्रिकेटिंग पंप उत्पाद की विशेषताएं

  • नीला, चांदी और लाल
  • मध्यम दबाव बार
  • कच्चा लोहा
  • कृषि
  • डायाफ्राम पंप
  • इलेक्ट्रिक वाट (w)

लुब्रिकेटिंग पंप व्यापार सूचना

  • 50 प्रति महीने
  • 3-4 हफ़्ता
  • अफ्रीका एशिया मिडल ईस्ट
  • ऑल इंडिया

उत्पाद वर्णन

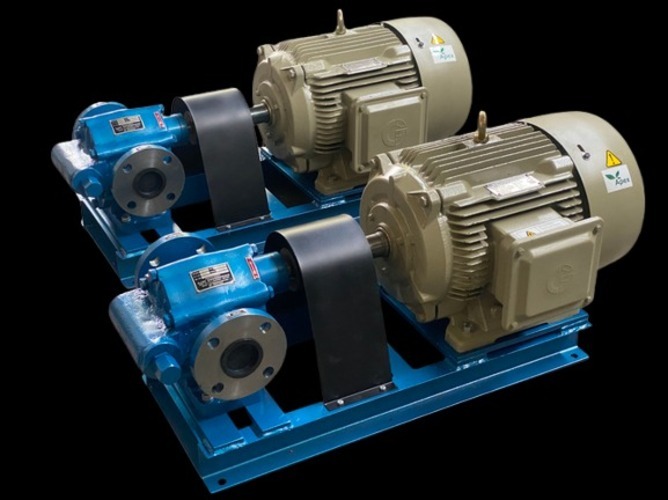

Lubricating Pump

Model : AL-Series

Ours is a trusted name of this domain engaged in manufacturing, exporting and supplying best quality of Lubricating Pump. This pump is designed by our highly experienced team of electrical and mechanical engineers using hi-tech designing machines. Pumps offered by us find their extensive application in various industries for lubricating machines and hydraulics. We also make sure that our complete manufacturing process is conducted under the supervision of our quality controllers so as to ensure that only best quality and defect free range is delivered at our customers' end. Lubricating Pump offered by us is known for the following quality features:

Products Features

  • High performance
  • हमारे उत्पाद Is Easy To Maintenance
  • Very Easy Installations Is Required
  • Lubricating Pump Having Good Sturdiness
  • These Are Rust Resistance
  • Provided Lubricating Pump Having Compact Design

Products General Specification:

  • Pump Rpm     :     1500 Rpm.
  • Mounting     :     Horizontal Foot Mounting / Flange Mounting
  • Type Of Drive     :     Directly Coupled To Ac Induction Motor
  • Pump Body & Covers     :     Graded Cast Iron
  • Gears & Shafts     :     En-24 Harden & Ground
  • Gear Type     :     Spur
  • Sealing System     :     Oil-Seal System
  • Pressure Relief Valve     :     Externally Adjustable Integral Pressure Relief Valve (Optional)
  • Bearing Type     :     Deep Groove Ball Bearing (1 No.) + Bronze Bushes (4 Nos.)

Products Technical Specification:

Model PORT OPTIONS CAPACITY in Ltr/min (LPM)
@ 1500 RPM
Recommended Horse-Power (hp) at Different Pressures
Suction & Discharge
(BSP Threaded Ends)
Suction & Discharge (Flanged Ends) At 50
P.S.I.
(H.P.)
At 100
P.S.I.
(H.P.)
At 200
P.S.I.
(H.P.)
At 300
P.S.I.
(H.P.)
At 500
P.S.I.
(H.P.)
LA-1 " x " --- 5 0.5 0.75 1.5 --- ---
LA-2 " x " --- 10 0.75 1.5 3 --- ---
LA-3 " x " --- 15 0.75 1 2 --- ---
LA-4 " x " --- 20 1 1.5 3 --- ---
LA-5 " x " --- 25 1 1.5 3 --- ---
LA-6 " x " --- 30 1 1.5 3 --- ---
