Lubricating Pump

Lubricating Pump

Product Details:

  • Color Blue, Silver and Red
  • Usage Agriculture
  • Material Cast Iron
  • Structure Diaphragm Pump
  • Power Electric Watt (w)
  • Pressure Medium Pressure Bar
  • Supply Ability : 50 , Unit Per Month
  • Click to view more
X

Price And Quantity

  • 5000 INR
  • 1 , Unit

Product Specifications

  • Blue, Silver and Red
  • Electric Watt (w)
  • Agriculture
  • Medium Pressure Bar
  • Cast Iron
  • Diaphragm Pump

Trade Information

  • Cash in Advance (CID), Cash Advance (CA)
  • 50 , Unit Per Month
  • 3-4 Week
  • Middle East
  • All India

Product Description

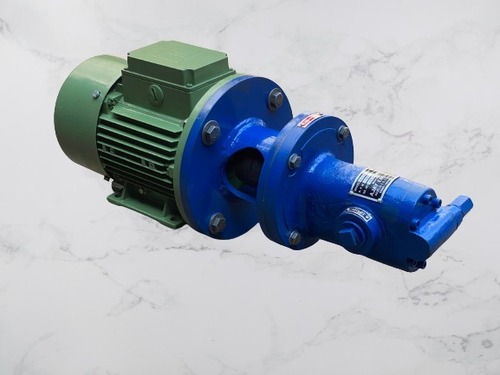

Lubricating Pump

Model : AL-Series

Ours is a trusted name of this domain engaged in manufacturing, exporting and supplying best quality of Lubricating Pump. This pump is designed by our highly experienced team of electrical and mechanical engineers using hi-tech designing machines. Pumps offered by us find their extensive application in various industries for lubricating machines and hydraulics. We also make sure that our complete manufacturing process is conducted under the supervision of our quality controllers so as to ensure that only best quality and defect free range is delivered at our customers' end. Lubricating Pump offered by us is known for the following quality features:

Products Features

  • High performance
  • Our Products Is Easy To Maintenance
  • Very Easy Installations Is Required
  • Lubricating Pump Having Good Sturdiness
  • These Are Rust Resistance
  • Provided Lubricating Pump Having Compact Design

Products General Specification:

  • Pump Rpm     :     1500 Rpm.
  • Mounting     :     Horizontal Foot Mounting / Flange Mounting
  • Type Of Drive     :     Directly Coupled To Ac Induction Motor
  • Pump Body & Covers     :     Graded Cast Iron
  • Gears & Shafts     :     En-24 Harden & Ground
  • Gear Type     :     Spur
  • Sealing System     :     Oil-Seal System
  • Pressure Relief Valve     :     Externally Adjustable Integral Pressure Relief Valve (Optional)
  • Bearing Type     :     Deep Groove Ball Bearing (1 No.) + Bronze Bushes (4 Nos.)

Products Technical Specification:

Model PORT OPTIONS CAPACITY in Ltr/min (LPM)
@ 1500 RPM
Recommended Horse-Power (hp) at Different Pressures
Suction & Discharge
(BSP Threaded Ends)
Suction & Discharge (Flanged Ends) At 50
P.S.I.
(H.P.)
At 100
P.S.I.
(H.P.)
At 200
P.S.I.
(H.P.)
At 300
P.S.I.
(H.P.)
At 500
P.S.I.
(H.P.)
LA-1 ¼" x ¼" --- 5 0.5 0.75 1.5 --- ---
LA-2 ⅜" x ⅜" --- 10 0.75 1.5 3 --- ---
LA-3 ½" x ½" --- 15 0.75 1 2 --- ---
LA-4 ½" x ½" --- 20 1 1.5 3 --- ---
LA-5 ¾" x ¾" --- 25 1 1.5 3 --- ---
LA-6 ¾" x ¾" --- 30 1 1.5 3 --- ---





AJAY ENGINEERING
