Molasses Tanker Unloading

Get a Price/Quote

MOQ : 1 Unit

Molasses Tanker Unloading Specification

Mounting Type
Base plate mounted

Theory
Centrifugal pump for liquid transfer

Max Suction
7 meters

Voltage
415V AC (Three Phase)

Working Temperature
-10C to 90C

Flow Rate
80 m3/hr

Features
Heavy-duty construction, Corrosion resistant, Easy installation, Minimal maintenance

Discharge Pressure
Up to 3.2 bar

Caliber
75 mm

Control System
Manual/Automatic with optional VFD

Speed
2900 RPM

Inlet/Outlet
3 x 3 (75 mm x 75 mm)

Fuel Tank Capacity
N/A (Electric drive)

Head Size
32 meters

Frequency
50 Hz

Noise Level
<80 dB

Material
Mild Steel with anti-corrosive coating / Stainless Steel on request

Structure
Horizontal centrifugal pump with base plate

Power
7.5 HP (5.5 kW)

Standard
IS Standards/ISO 5199

Fuel Type
Electric Motor Driven

Pressure
Up to 3.2 bar

Usage
Molasses tanker unloading from trucks or tanks

Application
Food industry, Distilleries, Sugar mills, Bulk molasses transfer

Suction Type
Positive suction

Seals Type
Mechanical seal/PTFE gland packing

Priming
Self-priming

Pump Type
End suction centrifugal pump

Capacity
80 m3/hr

Viscosity Range
Up to 5000 cP

Rotational Direction
Clockwise as viewed from drive end

Weight
Approx. 210 kg (pump with motor)

Impeller Type
Closed/ Semi-open, dynamically balanced

Connection Type
Flanged as per ANSI/BS/DIN

Protection Class
IP55 motor protection

Painting
Epoxy coated for durability

Shaft Material
High carbon steel / Stainless steel 410

Ambient Temperature
Up to 45C

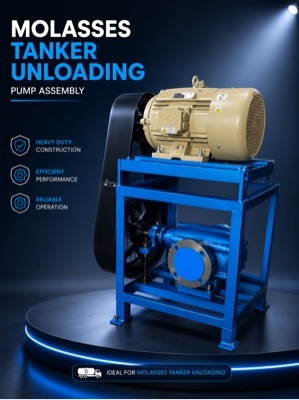

About Molasses Tanker Unloading

Clearance Alert! Purchase the Molasses Tanker Unloading Pump-an unparalleled solution engineered for enviable durability and radiant performance. Get it now and enjoy seamless bulk molasses transfer with robust 7.5 HP power, corrosion-resistant materials, and viscosity handling up to 5000 cP. Designed for clockwise rotation (viewed from the drive end), this heavy-duty centrifugal pump features a dynamically balanced impeller (closed/semi-open), IP55 protection, epoxy coating, and self-priming. Ideal for the food industry, distilleries, and sugar mills, its base plate mount ensures easy installation and minimal maintenance. Don't miss this limited stock clearance opportunity!

Precision Unloading for Bulk Molasses-Method and Application

The Molasses Tanker Unloading Pump is crafted for efficient transfer from trucks or storage tanks directly into processing lines. Usage is straightforward-connect via the ANSI/BS/DIN flanged inlets, select manual or automatic control (with optional VFD), and lift up to 7 meters. Popular in the food industry, sugar mills, and distilleries, its 3" 3" connections, robust mechanical seals, and high-viscosity capability ensure smooth, reliable operation across a variety of application areas.

Fast Domestic Supply-Main Market, Certification & Sampling

Stock Ready for quick dispatch across the domestic market! Our Molasses Tanker Unloading Pump, built to IS Standards and ISO 5199, caters primarily to food, sugar, and distillery sectors nationwide. With quality certifications, guaranteed performance, and sample availability upon request, you can experience the radiant efficiency before making a full investment. Choose us for reliable products, seamless supply, and responsive support on every order in our main domestic mar.

FAQ's of Molasses Tanker Unloading:

Q: How is the Molasses Tanker Unloading Pump installed and operated?

A: The pump is base plate mounted, ensuring a secure and stable installation. For operation, simply connect the flanged inlets/outlets, and choose between manual or automatic control modes with optional VFD for added flexibility.

Q: What industries benefit most from this unloading pump?

A: It is primarily designed for the food industry, distilleries, and sugar mills-especially for bulk molasses transfer from tankers or storage to production lines, thanks to its versatility, robust design, and corrosion resistance.

Q: When is the best time to purchase this product?

A: Right now during our clearance sale! Limited stock is available for immediate purchase and quick dispatch, ensuring you get unparalleled quality at an enviable price. Don't miss out-get it now while stock lasts.

Q: Where can the pump operate effectively?

A: It operates reliably wherever high-viscosity liquids like molasses need transferring-whether in processing plants, truck unloading stations, or storage facilities, withstanding temperatures from -10C to 90C.

Q: What protections and standards does the pump comply with?

A: The pump features IP55 motor protection, epoxy anti-corrosive painting, dynamically balanced impellers, and adheres to IS Standards and ISO 5199, ensuring long-term performance and safety.

Q: How does the pump handle high-viscosity fluids during transfer?

A: Thanks to its end suction centrifugal design, self-priming function, and high suction capacity, the pump efficiently transfers fluids up to 5000 cP viscosity, maintaining a steady flow of up to 80 m3/hr.
